Register FingerPrint

REGISTER AN EMPLOYEE FINGER PRINT



In the below page,

• Select Employee ID
• Finger Index and
• Click on register button to capture Employee finger print.



Employee ID : List of all the employees of your outlet will be displayed in the dropdown list. Select the Employee ID of that employee who’s FP has to be registered.

Finger Index: A list of Finger Index from 0 to 9 will be displayed in the dropdown list. Select the index number of the finger which the employee will be registering.



Index starts from 0 - left hand little finger and ends at 9 - right hand little finger (join your hands to pray!)

Upon clicking Register button following page will be displayed.

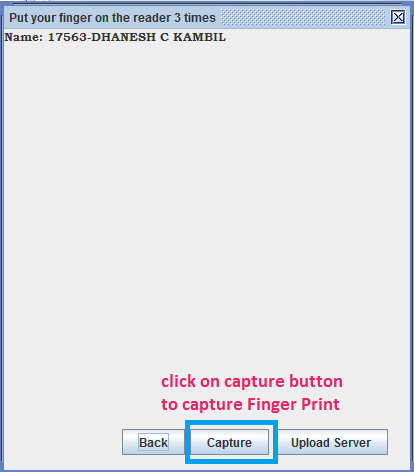

• Click on Capture button to capture the employee’s FP.

• Ask the employee to place his/her finger on the Finger print sensor for three times consecutively to capture finger print.





  Ask them to gently place and lift the finger on and away from the FP sensor thrice.

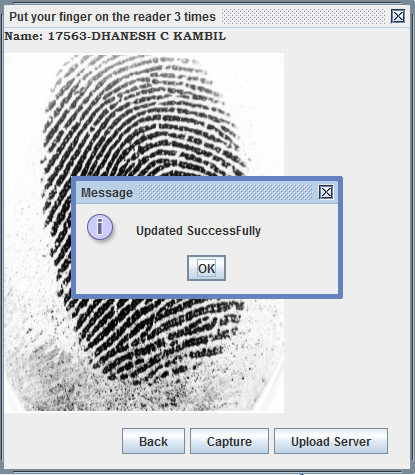

  Once the FP is scanned FP captured will be displayed as shown below with the message shown in the picture below.



  Similarly, select another index for the same employee to register another finger.

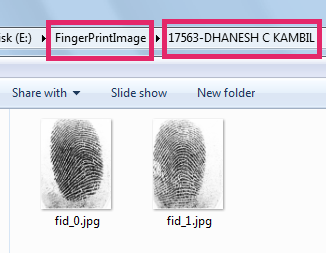

  Use clear button to clear the contents. One employee can register only 2 fingers. The FP image captured will be stored the image path specified in the settings.
